Private jet interiors

Step inside 42 business jets and turboprops in 3D, drawn to their published cabin size.

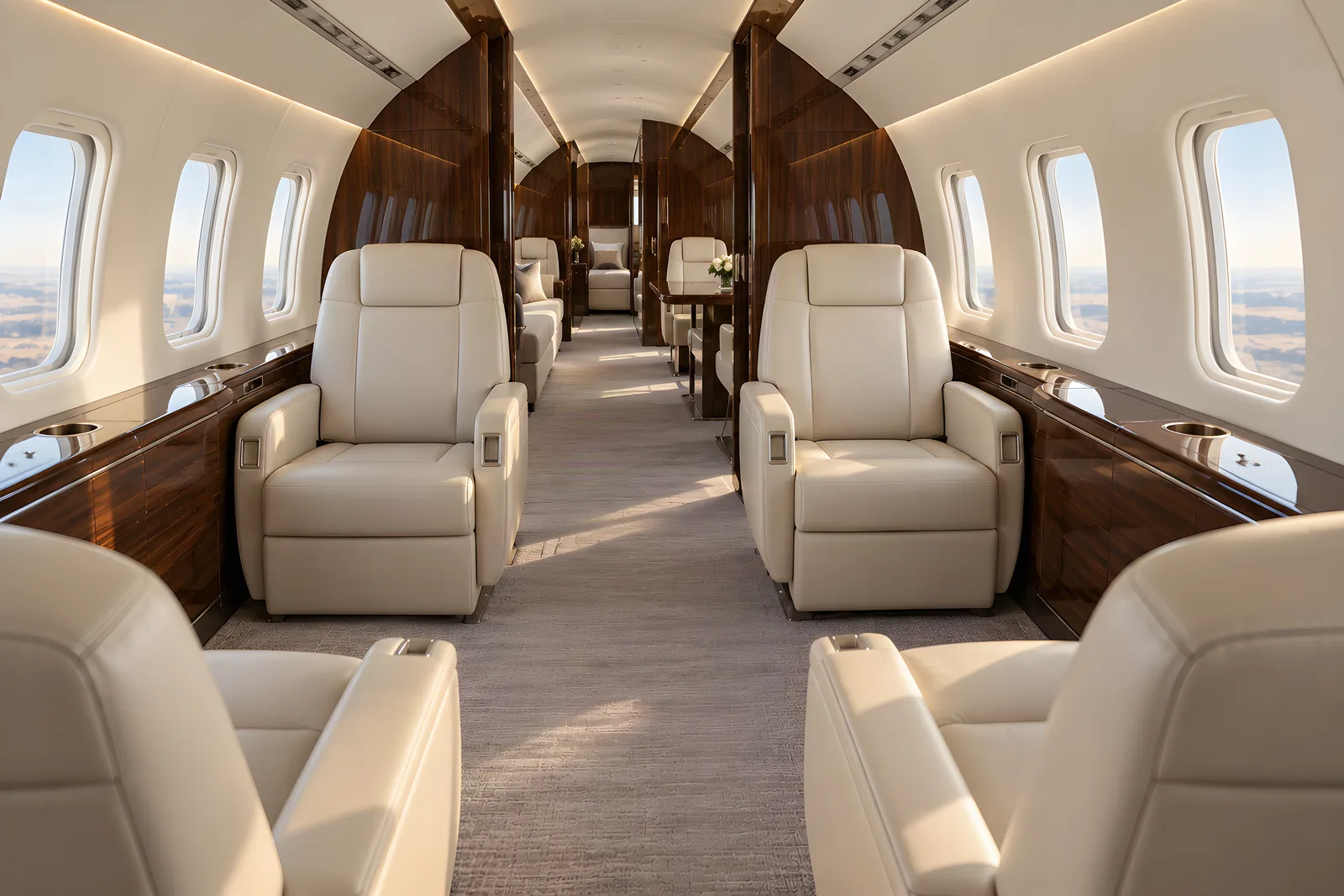

Bombardier Global 7500 cabin interior illustration: warm natural light fills a stand-up Bombardier Global 7500 cabin with cream leather club seats, tall rounded rectangular windows, wood veneer cabinetry and an aisle leading aft toward the dining and lounge suites.
Illustration of a representative Bombardier Global 7500 cabin interior. Every aircraft's completion differs.

Bombardier Global 750054 ft 5 in long, 8 ft wide, 6 ft 2 in high, up to 19 passengersGlobal 7500 interior and seat map

COMPARE TWO CABINS

Two cabins side by side, to scale.

Pick any two of 70 jets and turboprops. Published cabin height, width and length, drawn on one scale with a 6 ft person.

6 ftFloor. Height and width as published; walls drawn as a simple curve.
Cross-sections, overlaid
G70056 ft 11 inGlobal 750054 ft 5 in
Cabin length

SEAT MAPS

A private jet seat map, layout by layout.

The Bombardier Global 7500: its typical completion and its cabin in plan, to scale. Every model's interior page has its own seat map.

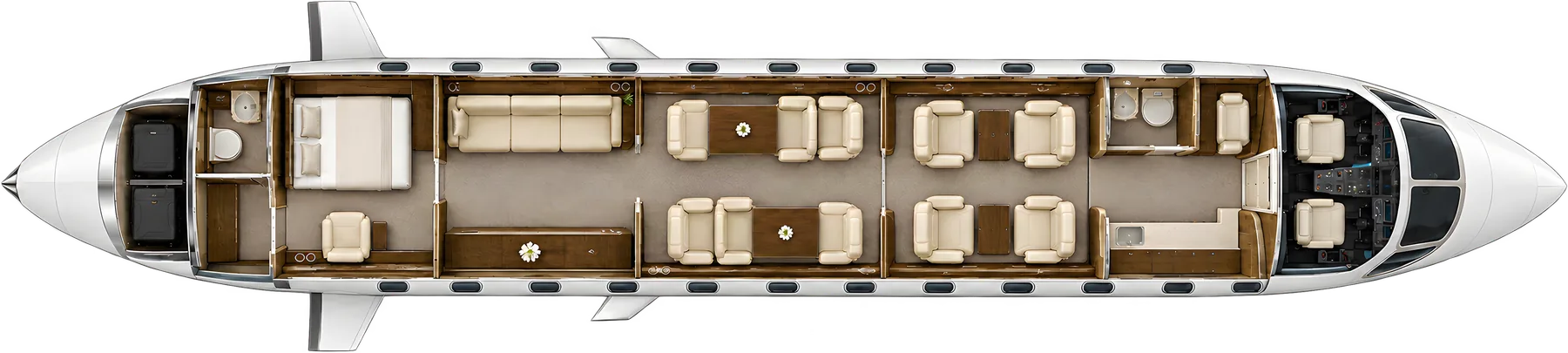

Bombardier Global 7500 seat map illustration: top-down view of the cabin. Typical 14-passenger layout: four club seats, six dining seats, a three-place divan, one chair beside an aft bed, forward galley and two lavatories.
Typical 14-passenger layout: four club seats, six dining seats, a three-place divan, one chair beside an aft bed, forward galley and two lavatories Illustration; every aircraft is completed to order.

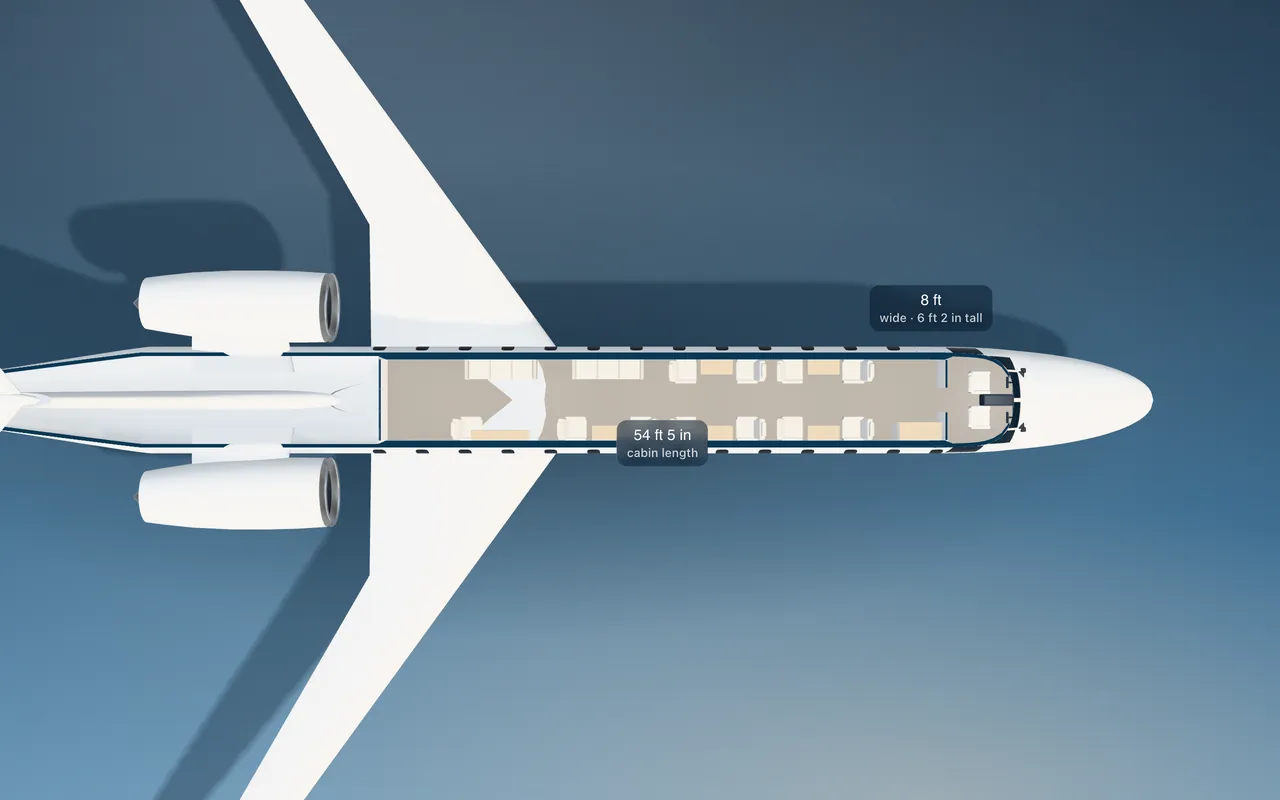

Bombardier Global 7500 3D seat map illustration: plan view cut through the 54 ft 5 in cabin, with a representative 17-seat layout.
Plan view cut through the 54 ft 5 in cabin, with a representative 17-seat layout.

CABIN SIZE BY CLASS

Private jet cabin sizes, smallest class first.

How much room is inside a private jet depends first on its class. The range runs from the smallest to the largest published cabin among the models in each class; a cabin of 6 ft or more is a stand-up cabin. These are the type's dimensions, not any one interior.

ClassModelsCabin heightCabin widthCabin lengthPassengersStand-up cabins
Turboprop 4 4 ft to 4 ft 10 in 4 ft to 5 ft 4 in 12 ft 9 in to 19 ft 6 in 5 to 13 None
Very light jet 3 4 ft 1 in to 4 ft 6 in 4 ft 7 in to 5 ft 1 in 9 ft 9 in to 12 ft 4 in 5 to 6 None
Light jet 23 4 ft 4 in to 5 ft 5 in 4 ft 9 in to 5 ft 7 in 10 ft 6 in to 23 ft 6 to 11 None
Midsize jet 12 4 ft 11 in to 6 ft 4 ft 10 in to 6 ft 10 in 12 ft 8 in to 26 ft 10 in 8 to 15 2 of 12
Super-midsize jet 10 5 ft 8 in to 6 ft 3 in 5 ft 6 in to 7 ft 2 in 23 ft 6 in to 28 ft 7 in 8 to 12 8 of 10
Large-cabin jet 11 6 ft to 6 ft 2 in 6 ft 11 in to 8 ft 2 in 25 ft 7 in to 45 ft 1 in 12 to 19 11 of 11
Ultra-long-range jet 8 6 ft 2 in to 6 ft 3 in 7 ft 4 in to 8 ft 2 in 39 ft 1 in to 56 ft 11 in 16 to 19 8 of 8

Published figures from the manufacturers and type certificates, as on each model page; passengers are the most each type is published for. Every class compared on range and value.

EVERY MODEL

Interiors, seat maps and cabin size of 71 private aircraft

InteriorClassHeightWidthLengthPassengersModel page
Cessna Caravan interior Turboprop 4 ft 6 in 5 ft 4 in 12 ft 9 in Up to 13 Caravan specs and value
Daher TBM 960 interior Turboprop 4 ft 4 ft 13 ft 3 in Up to 5 TBM 960 specs and value
Pilatus PC-12 interior Turboprop 4 ft 10 in 5 ft 16 ft 11 in Up to 9 PC-12 specs and value
Beechcraft King Air 350 interior Turboprop 4 ft 9 in 4 ft 6 in 19 ft 6 in Up to 10 King Air 350 specs and value
Cessna Citation Mustang interior Very light jet 4 ft 6 in 4 ft 7 in 9 ft 9 in Up to 5 Citation Mustang specs and value
Cirrus Vision Jet interior Very light jet 4 ft 1 in 5 ft 1 in 11 ft 6 in Up to 6 Vision Jet specs and value
Eclipse 500 interior Very light jet 4 ft 2 in 4 ft 8 in 12 ft 4 in Up to 5 Eclipse 500 specs and value
Learjet 40 interior Light jet 4 ft 11 in 5 ft 1 in Not published Varies Learjet 40 specs and value
Learjet 36 interior Light jet 4 ft 4 in 4 ft 11 in 10 ft 6 in Up to 6 Learjet 36 specs and value
Cessna Citation CJ1 interior Light jet 4 ft 9 in 4 ft 10 in 11 ft Up to 6 Citation CJ1 specs and value
Cessna Citation M2 series interior Light jet 4 ft 9 in 4 ft 10 in 11 ft Up to 6 Citation M2 specs and value
Embraer Phenom 100 interior Light jet 4 ft 11 in 5 ft 1 in 11 ft Up to 7 Phenom 100 specs and value
Cessna Citation I interior Light jet 4 ft 4 in 4 ft 11 in 12 ft 8 in Up to 7 Citation I specs and value
Learjet 35A interior Light jet 4 ft 4 in 4 ft 11 in 12 ft 11 in Up to 8 Learjet 35A specs and value
Beechcraft Premier I interior Light jet 5 ft 5 in 5 ft 6 in 13 ft 6 in Up to 7 Premier I specs and value
Beechcraft Beechjet 400A interior Light jet 4 ft 9 in 4 ft 11 in 15 ft 6 in Up to 9 Beechjet 400A specs and value
Nextant 400XTi interior Light jet 4 ft 9 in 4 ft 11 in 15 ft 6 in Up to 8 Nextant 400XTi specs and value

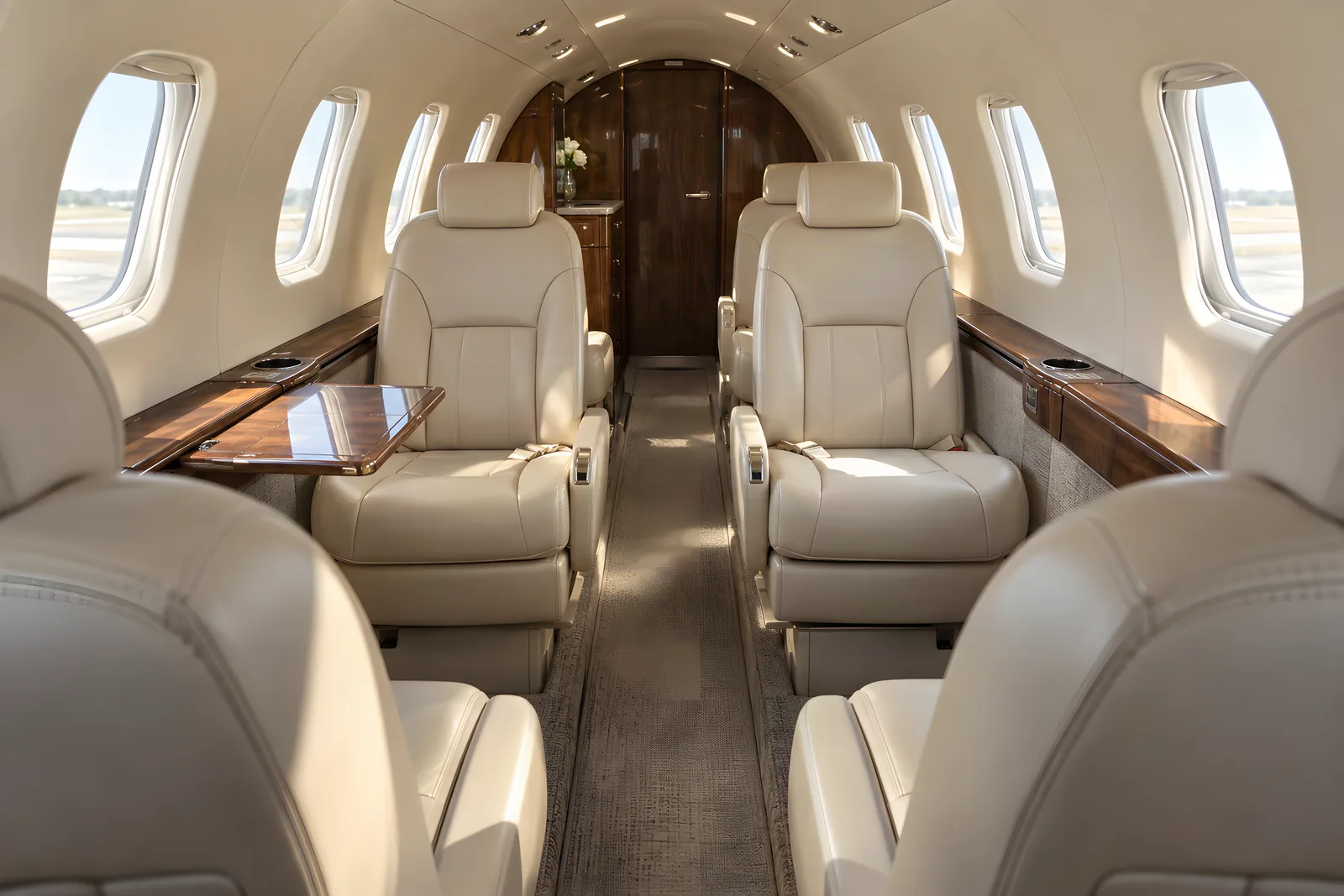

Cessna Citation CJ3 interior Light jet 4 ft 9 in 4 ft 10 in 15 ft 8 in Up to 8 Citation CJ3 specs and value
Cessna Citation Bravo interior Light jet 4 ft 9 in 4 ft 10 in 15 ft 8 in Varies Citation Bravo specs and value
Cessna Citation II interior Light jet 4 ft 8 in 4 ft 11 in 16 ft 3 in Varies Citation II specs and value
Embraer Phenom 300 series interior Light jet 4 ft 11 in 5 ft 1 in 16 ft 5 in Up to 9 Phenom 300 specs and value
Learjet 31A interior Light jet 4 ft 5 in 4 ft 11 in 17 ft 1 in Up to 9 Learjet 31A specs and value
Cessna Citation V interior Light jet 4 ft 9 in 4 ft 9 in 17 ft 4 in Up to 11 Citation V specs and value
Cessna Citation CJ4 series interior Light jet 4 ft 9 in 4 ft 10 in 17 ft 4 in Up to 9 Citation CJ4 specs and value
Cessna Citation Encore interior Light jet 4 ft 9 in 4 ft 10 in 17 ft 4 in Up to 11 Citation Encore specs and value
HondaJet interior Light jet 4 ft 10 in 5 ft 17 ft 10 in Up to 7 HondaJet specs and value
Cessna Citation CJ2 interior Light jet 4 ft 9 in 4 ft 10 in 18 ft 8 in Up to 8 Citation CJ2 specs and value
Learjet 45 interior Light jet 4 ft 11 in 5 ft 1 in 19 ft 9 in Up to 9 Learjet 45 specs and value
Learjet 75 interior Light jet 4 ft 11 in 5 ft 1 in 19 ft 10 in Up to 9 Learjet 75 specs and value
Pilatus PC-24 interior Light jet 5 ft 1 in 5 ft 7 in 23 ft Up to 10 PC-24 specs and value
Dassault Falcon 10 interior Midsize jet 4 ft 11 in 4 ft 10 in 12 ft 8 in Up to 9 Falcon 10 specs and value
IAI 1124A Westwind II interior Midsize jet 4 ft 11 in 4 ft 10 in 15 ft 6 in Up to 10 IAI 1124A Westwind II specs and value
Learjet 55 interior Midsize jet 5 ft 9 in 5 ft 11 in 16 ft 8 in Up to 8 Learjet 55 specs and value
Cessna Citation III interior Midsize jet 5 ft 8 in 5 ft 6 in 18 ft 5 in Up to 13 Citation III specs and value
Cessna Citation XLS interior Midsize jet 5 ft 8 in 5 ft 6 in 18 ft 6 in Up to 10 Citation XLS specs and value
Hawker Siddeley HS.125 Series 700A interior Midsize jet 5 ft 9 in 6 ft 21 ft 4 in Up to 15 Siddeley HS.125 Series 700A specs and value
Hawker 800XP interior Midsize jet 5 ft 9 in 6 ft 21 ft 4 in Up to 15 Hawker 800XP specs and value
Hawker 900XP interior Midsize jet 5 ft 9 in 6 ft 21 ft 4 in Up to 15 Hawker 900XP specs and value

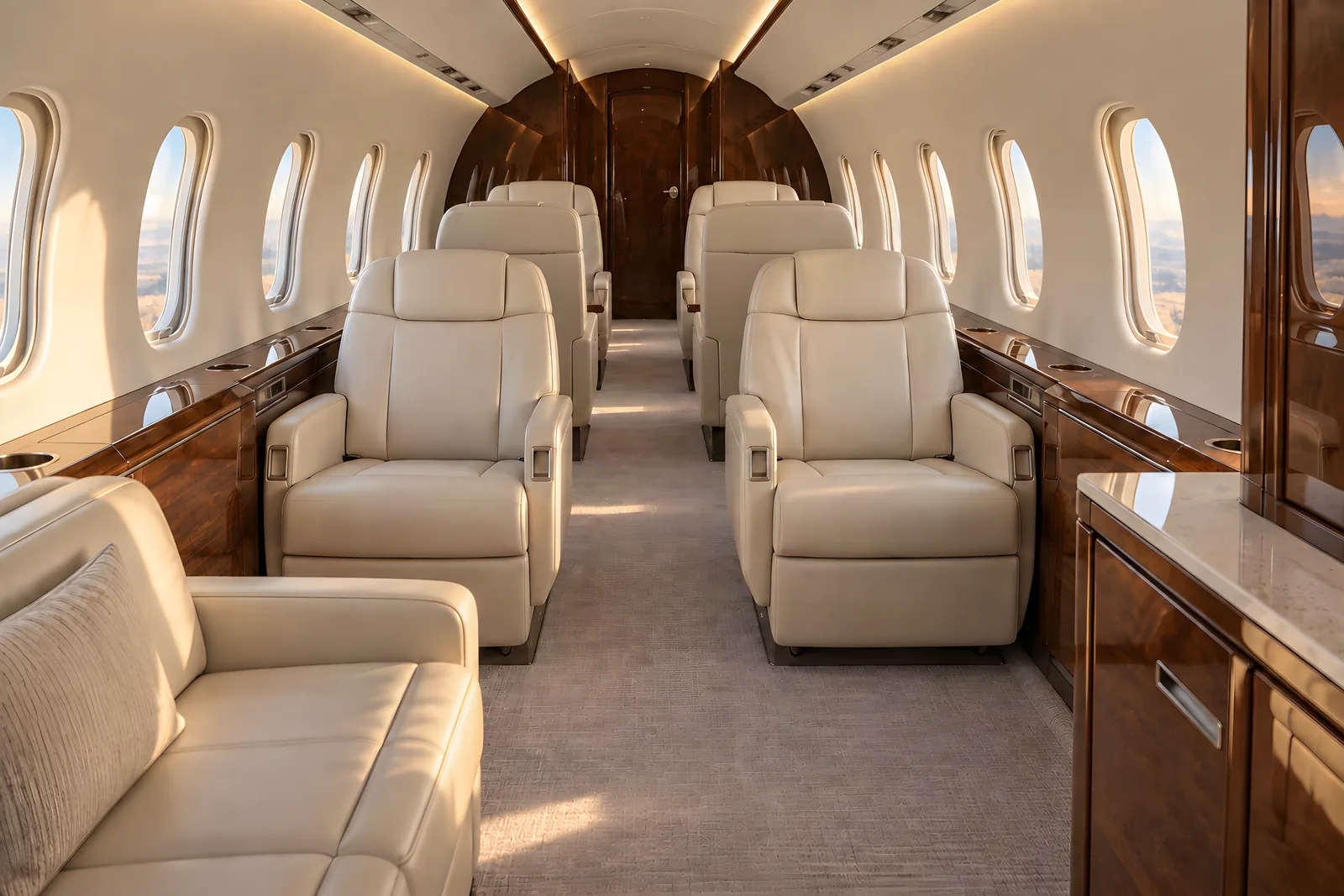

Cessna Citation Latitude interior Midsize jet 6 ft 6 ft 5 in 21 ft 9 in Up to 9 Citation Latitude specs and value
Cessna Citation Excel interior Midsize jet 5 ft 10 in 5 ft 9 in 23 ft Up to 10 Citation Excel specs and value
Cessna Citation Sovereign interior Midsize jet 5 ft 8 in 5 ft 6 in 25 ft 3 in Up to 12 Citation Sovereign specs and value
Embraer Legacy 500 interior Midsize jet 6 ft 6 ft 10 in 26 ft 10 in Up to 12 Legacy 500 specs and value
Dassault Falcon 50 interior Super-midsize jet 5 ft 11 in 6 ft 1 in 23 ft 6 in Up to 9 Falcon 50 specs and value
Gulfstream G200 interior Super-midsize jet 6 ft 3 in 7 ft 2 in 24 ft 5 in Up to 10 G200 specs and value
Hawker 4000 interior Super-midsize jet 6 ft 6 ft 6 in 25 ft Up to 10 Hawker 4000 specs and value

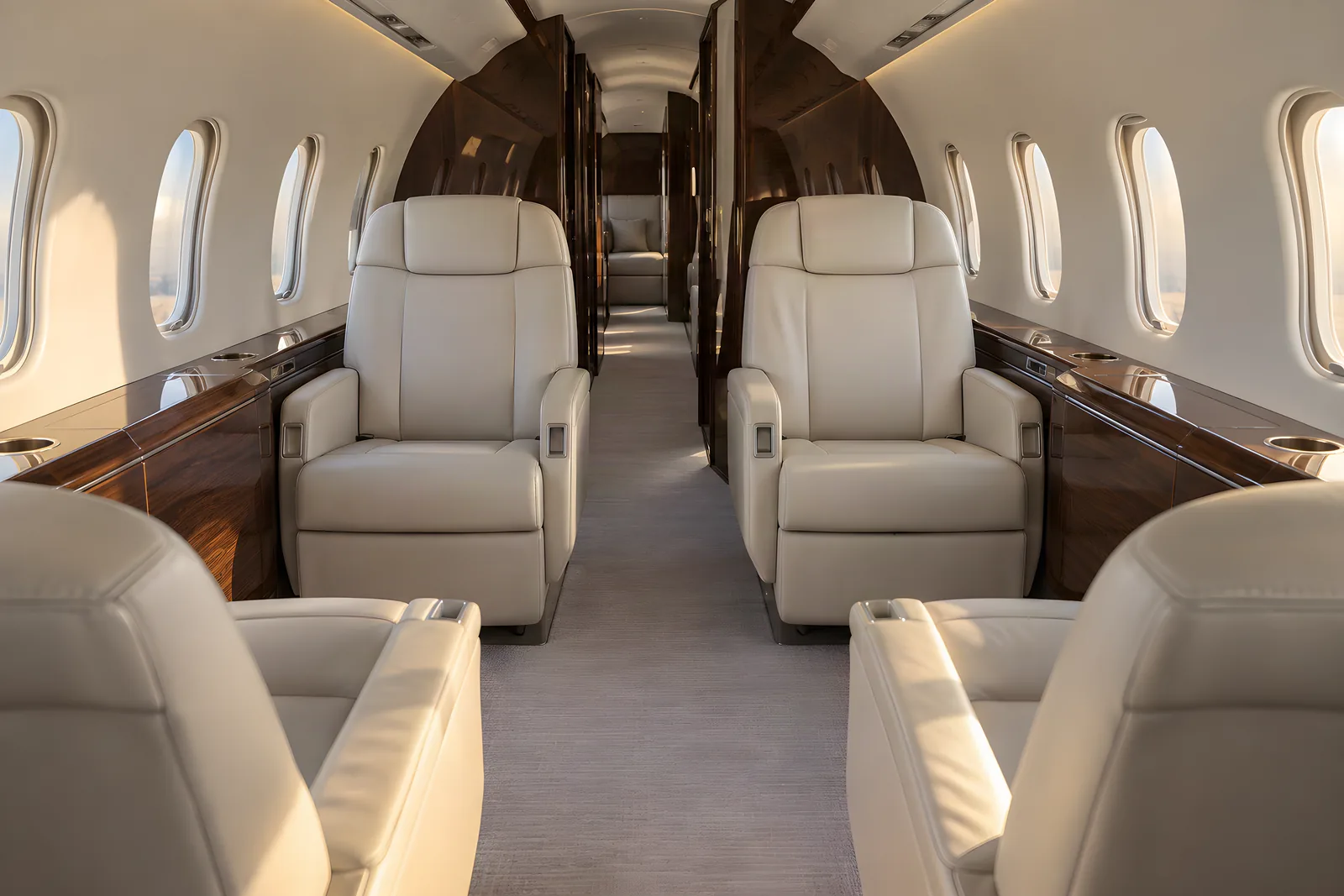

Bombardier Challenger 350 interior Super-midsize jet 6 ft 7 ft 2 in 25 ft 2 in Up to 10 Challenger 350 specs and value
Bombardier Challenger 3500 interior Super-midsize jet 6 ft 7 ft 2 in 25 ft 2 in Up to 10 Challenger 3500 specs and value
Cessna Citation Longitude interior Super-midsize jet 6 ft 6 ft 5 in 25 ft 2 in Up to 12 Citation Longitude specs and value

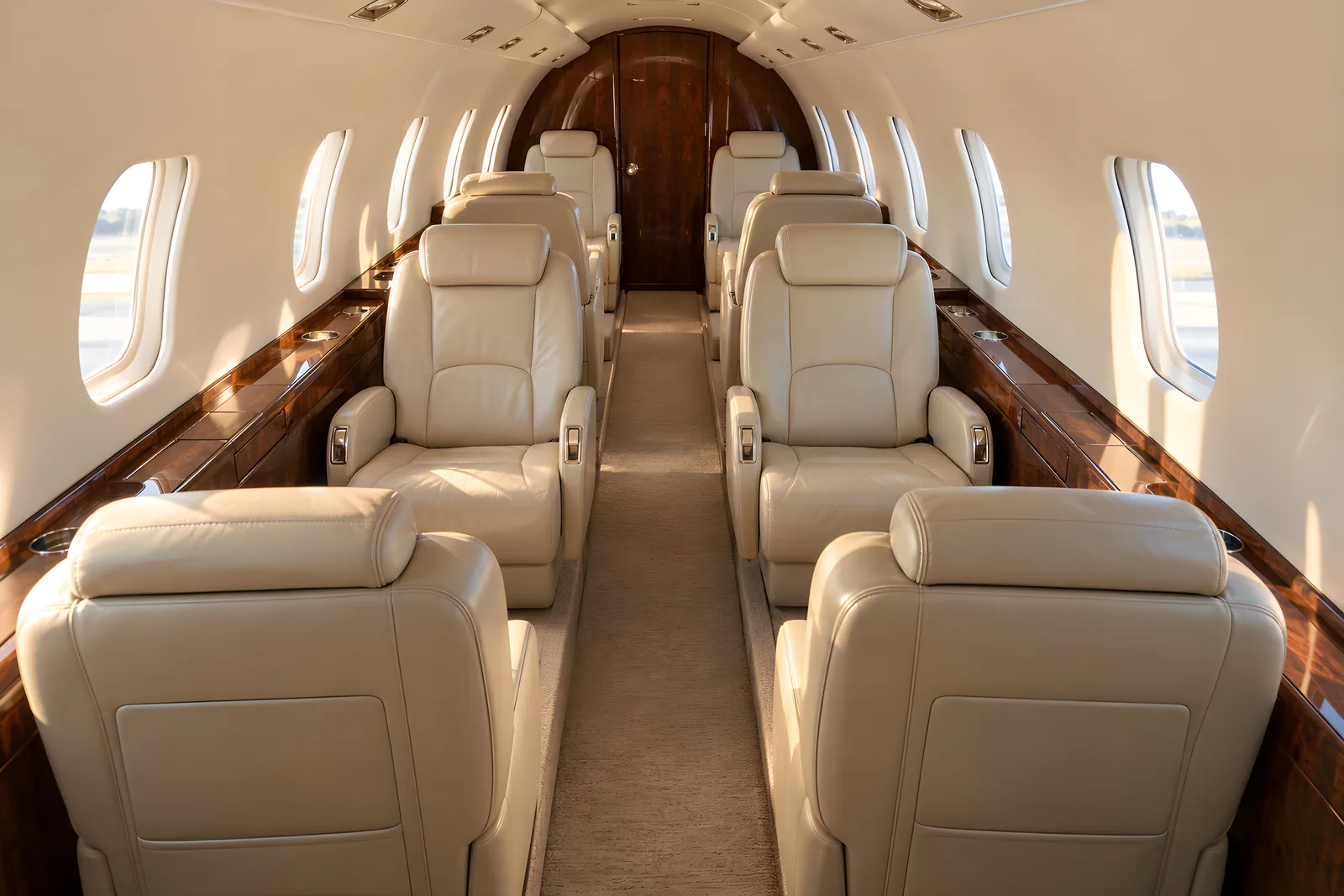

Cessna Citation X interior Super-midsize jet 5 ft 8 in 5 ft 6 in 25 ft 2 in Up to 12 Citation X specs and value

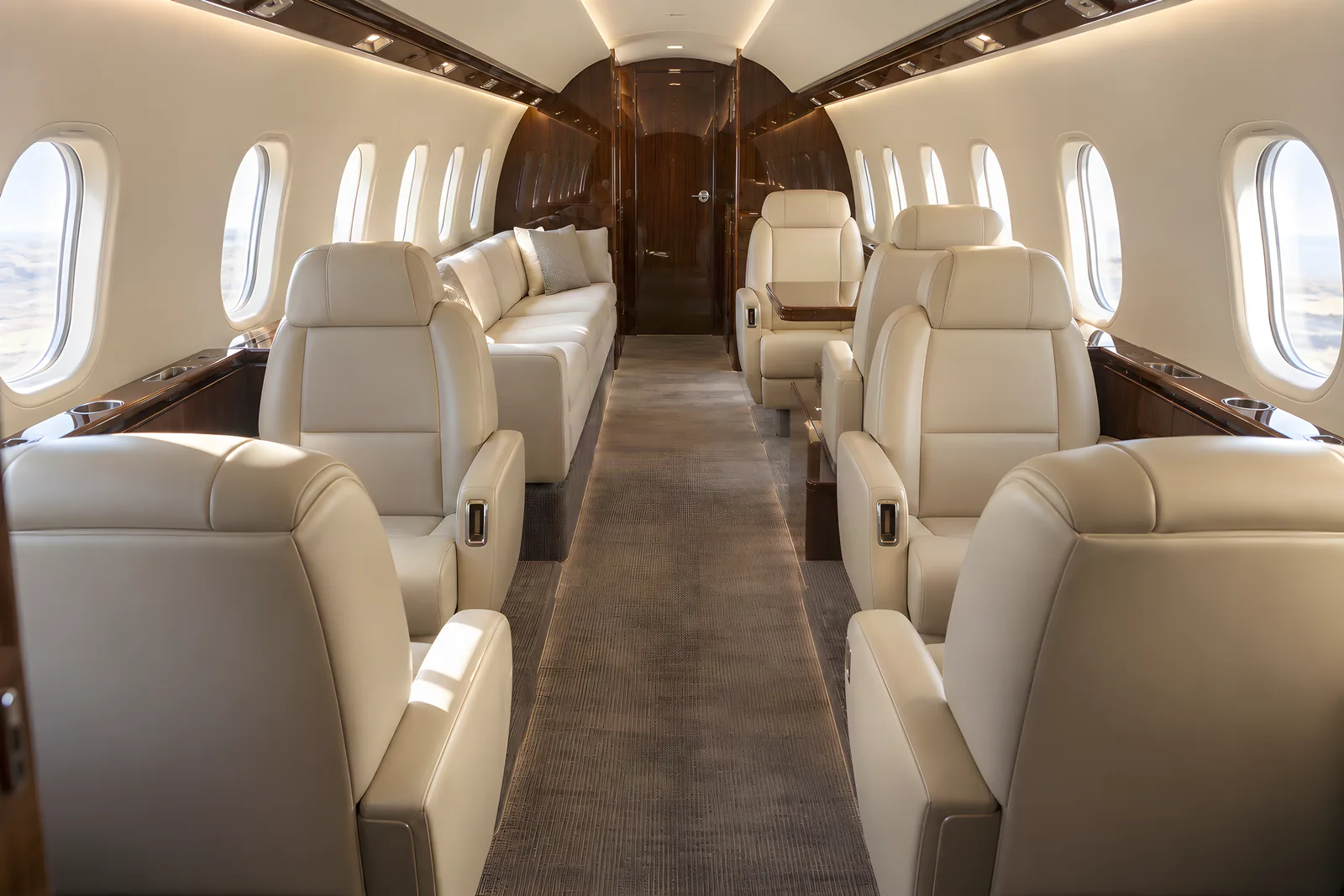

Gulfstream G280 interior Super-midsize jet 6 ft 1 in 6 ft 11 in 25 ft 10 in Up to 10 G280 specs and value
Embraer Praetor 600 interior Super-midsize jet 6 ft 6 ft 10 in 26 ft 10 in Up to 12 Praetor 600 specs and value
Bombardier Challenger 300 interior Super-midsize jet 6 ft 1 in 7 ft 2 in 28 ft 7 in Up to 8 Challenger 300 specs and value
Bombardier Challenger 650 interior Large-cabin jet 6 ft 7 ft 11 in 25 ft 7 in Up to 12 Challenger 650 specs and value
Dassault Falcon 2000 interior Large-cabin jet 6 ft 2 in 7 ft 8 in 26 ft 2 in Up to 19 Falcon 2000 specs and value
Bombardier Challenger 605 interior Large-cabin jet 6 ft 1 in 8 ft 2 in 28 ft 3 in Up to 12 Challenger 605 specs and value
Bombardier Challenger 601-3A interior Large-cabin jet 6 ft 1 in 8 ft 2 in 28 ft 4 in Up to 19 Challenger 601-3A specs and value
Bombardier Challenger 604 interior Large-cabin jet 6 ft 1 in 8 ft 2 in 28 ft 5 in Up to 19 Challenger 604 specs and value
Dassault Falcon 900 interior Large-cabin jet 6 ft 2 in 7 ft 8 in 33 ft 2 in Up to 14 Falcon 900 specs and value

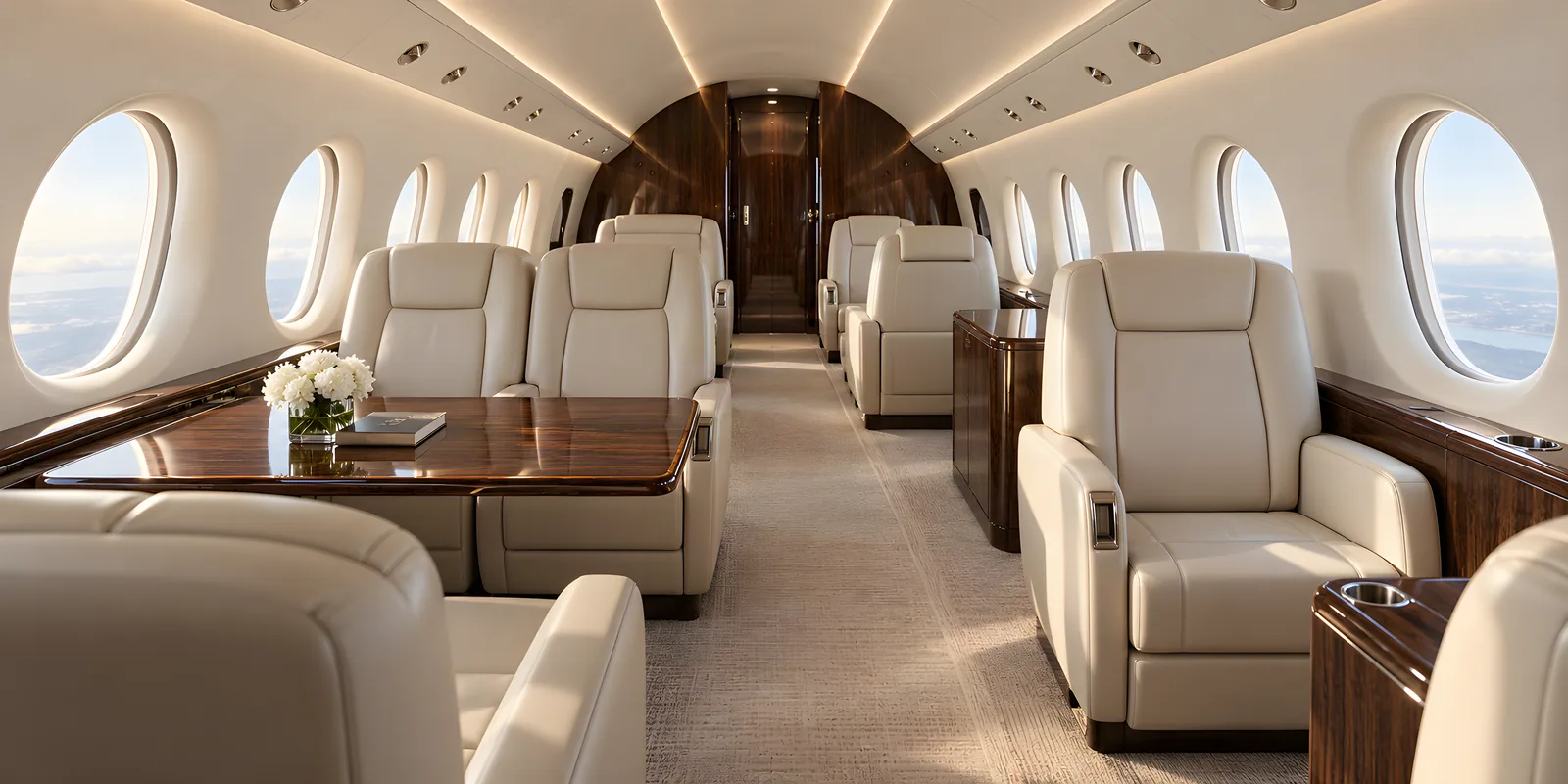

Gulfstream G450 interior Large-cabin jet 6 ft 2 in 7 ft 4 in 40 ft 4 in Up to 19 G450 specs and value
Bombardier Global 5000 interior Large-cabin jet 6 ft 2 in 7 ft 11 in 40 ft 9 in Up to 16 Global 5000 specs and value
Gulfstream G500 interior Large-cabin jet 6 ft 2 in 7 ft 7 in 41 ft 6 in Up to 19 G500 specs and value
Embraer Legacy 600 interior Large-cabin jet 6 ft 6 ft 11 in 42 ft 5 in Up to 14 Legacy 600 specs and value
Gulfstream IV interior Large-cabin jet 6 ft 1 in 7 ft 4 in 45 ft 1 in Up to 19 IV specs and value
Dassault Falcon 7X interior Ultra-long-range jet 6 ft 2 in 7 ft 8 in 39 ft 1 in Up to 16 Falcon 7X specs and value
Bombardier Global 6000 interior Ultra-long-range jet 6 ft 2 in 7 ft 11 in 43 ft 3 in Up to 17 Global 6000 specs and value

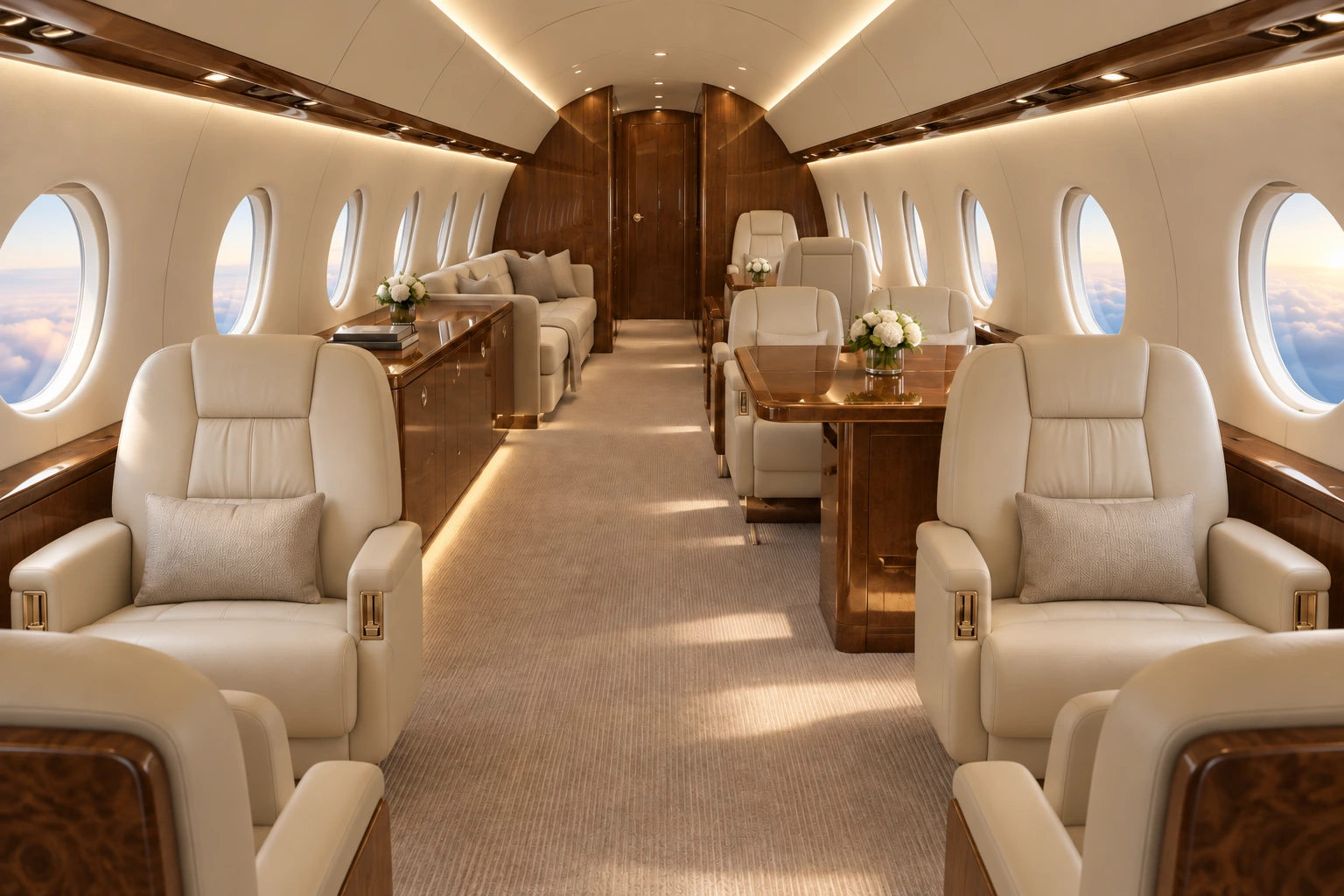

Gulfstream G550 interior Ultra-long-range jet 6 ft 2 in 7 ft 4 in 43 ft 11 in Up to 19 G550 specs and value
Gulfstream G600 interior Ultra-long-range jet 6 ft 2 in 7 ft 7 in 45 ft 2 in Up to 19 G600 specs and value
Gulfstream G800 interior Ultra-long-range jet 6 ft 3 in 8 ft 2 in 46 ft 10 in Up to 19 G800 specs and value
Gulfstream V interior Ultra-long-range jet 6 ft 2 in 7 ft 4 in 50 ft 1 in Up to 19 V specs and value
Bombardier Global 7500 interior Ultra-long-range jet 6 ft 2 in 8 ft 54 ft 5 in Up to 19 Global 7500 specs and value

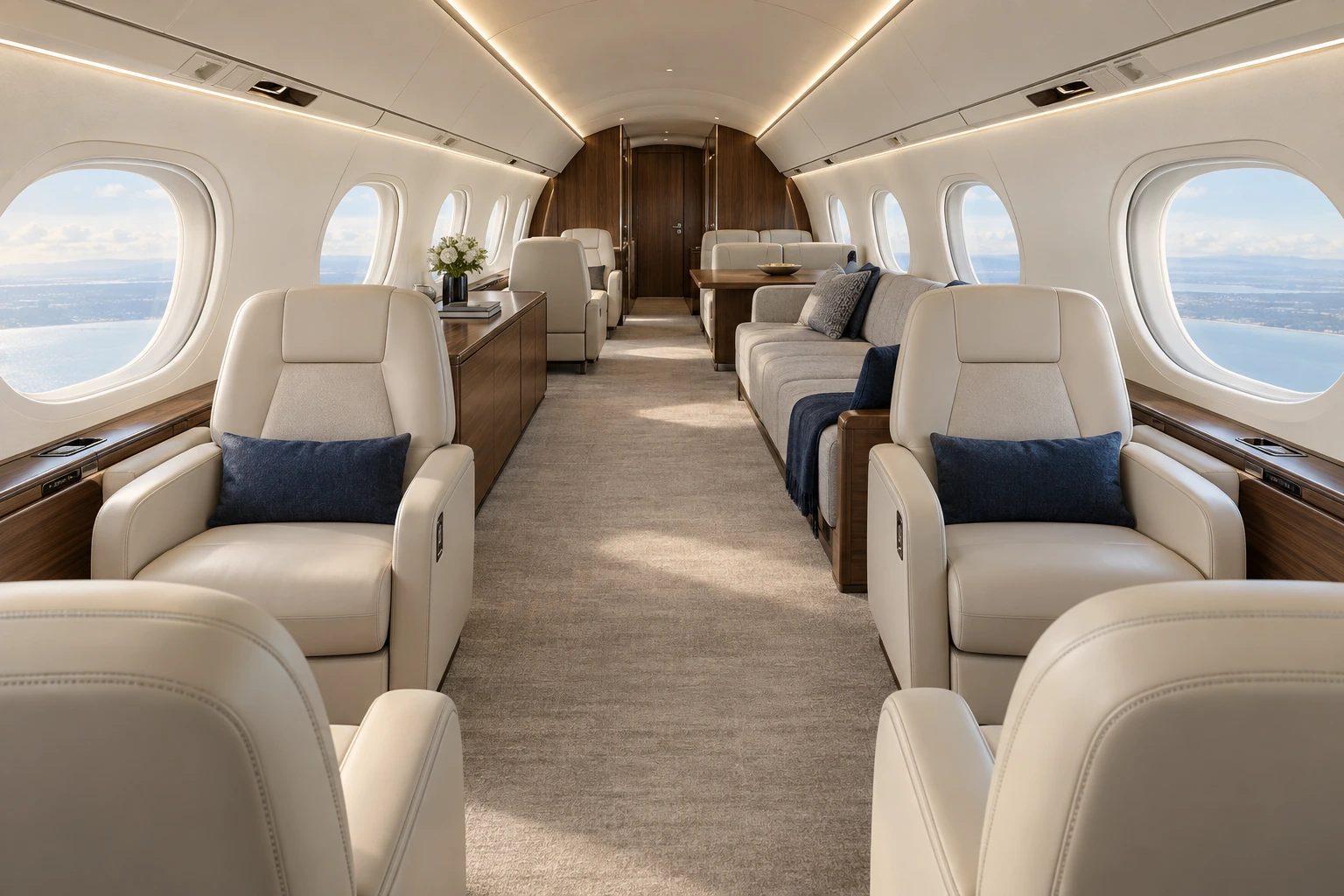

Gulfstream G700 interior Ultra-long-range jet 6 ft 3 in 8 ft 2 in 56 ft 11 in Up to 19 G700 specs and value

Cabin length as each manufacturer measures it (usually the passenger cabin, without the cockpit and baggage). Where a page has no published cabin table, the figures are the published dimensions the 3D model is built from. Browse every aircraft type.

QUESTIONS

Private jet interior questions, answered from the data

Which private jets have a stand-up cabin?

Of the 71 models compared here, 29 have a cabin at least 6 ft high; the shortest of them is the Cessna Citation Latitude (6 ft high, 21 ft 9 in long). turboprop, very light jet and light jet cabins are all under 6 ft: seated cabins.

Which private jet has the largest cabin?

By published cabin length, the Gulfstream G700: 56 ft 11 in long, 6 ft 3 in high and 8 ft 2 in wide. The widest cabin here is the Bombardier Challenger 605's, at 8 ft 2 in. Airliners converted to private use (ACJ, BBJ) are larger again and are not compared here.

What does a private jet seat map look like?

Most business jets seat four in a club arrangement (two pairs of facing seats) at the front of the cabin. Larger cabins add a second club or a conference group of four around a table, then a divan that converts to a bed, with the galley forward and the lavatory aft. Every aircraft is completed to its owner's order, so the seat map on a model's interior page is a representative layout, not that of any one aircraft.

How big is a private jet cabin?

Turboprops: 4 ft to 4 ft 10 in high, 4 ft to 5 ft 4 in wide, 12 ft 9 in to 19 ft 6 in long. Very light jets: 4 ft 1 in to 4 ft 6 in high, 4 ft 7 in to 5 ft 1 in wide, 9 ft 9 in to 12 ft 4 in long. Light jets: 4 ft 4 in to 5 ft 5 in high, 4 ft 9 in to 5 ft 7 in wide, 10 ft 6 in to 23 ft long. Midsize jets: 4 ft 11 in to 6 ft high, 4 ft 10 in to 6 ft 10 in wide, 12 ft 8 in to 26 ft 10 in long. Super-midsize jets: 5 ft 8 in to 6 ft 3 in high, 5 ft 6 in to 7 ft 2 in wide, 23 ft 6 in to 28 ft 7 in long. Large-cabin jets: 6 ft to 6 ft 2 in high, 6 ft 11 in to 8 ft 2 in wide, 25 ft 7 in to 45 ft 1 in long. Ultra-long-range jets: 6 ft 2 in to 6 ft 3 in high, 7 ft 4 in to 8 ft 2 in wide, 39 ft 1 in to 56 ft 11 in long. Figures are the manufacturers' published cabin dimensions.

Are these photos of real private jet interiors?

No. Every cabin on this page is Radar's own illustration or 3D model of the type, drawn to the published cabin dimensions with a representative layout. There are no photographs, manufacturer images or logos, and no aircraft is shown with its owner's completion.
