Pilatus PC-24 interior cabin size, seat map and 3D tour
The Pilatus PC-24 cabin is 23 ft long, 5 ft 7 in wide and 5 ft 1 in high, a seated cabin: most adults stoop to move about. It is published for up to 10 passengers; a typical completion seats 8, with forward galley and forward lavatory.
- Cabin length
- 23 ft
- Cabin width
- 5 ft 7 in
- Cabin height
- 5 ft 1 in
- Stand-up cabin
- No
- Passengers
- 8 typical, up to 10
- Seating areas
- 3
- Galley
- Forward galley
- Lavatory
- Forward lavatory
- Baggage
- Aft baggage

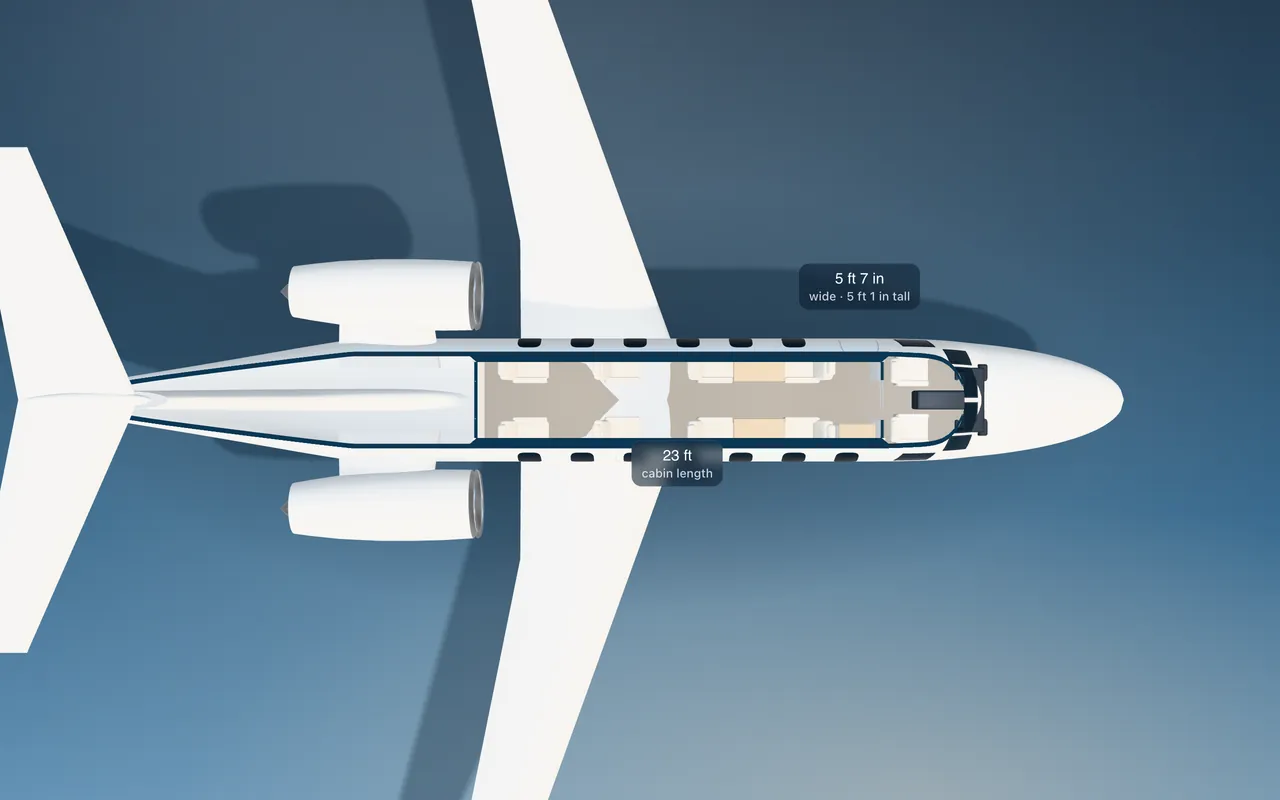

SEAT MAP AND LAYOUT
The PC-24 seat maps.
From the front, a representative PC-24 cabin has a club of four facing seats, a pair of forward-facing seats and a pair of forward-facing seats. Galley forward and lavatory aft is the usual plan; owners choose seats, divans and monuments when the aircraft is completed.
COMPARED, TO SCALE
PC-24 cabin vs Phenom 300, Citation Excel and Citation CJ3
Published cabin height, width and length, drawn on one scale with a 6 ft person. Light jets compared on every private jet interior.
- Pilatus PC-24 5 ft 1 in high, 5 ft 7 in wide, 23 ft long, up to 10 passengers
- Embraer Phenom 300 series interior 4 ft 11 in high, 5 ft 1 in wide, 16 ft 5 in long, up to 9 passengers
- Cessna Citation Excel interior 5 ft 10 in high, 5 ft 9 in wide, 23 ft long, up to 10 passengers
- Cessna Citation CJ3 interior 4 ft 9 in high, 4 ft 10 in wide, 15 ft 8 in long, up to 8 passengers
QUESTIONS
PC-24 interior questions
More on the type: Pilatus PC-24 price, specs, range and every tail number, light jets compared, private jet interiors by class.
How big is the PC-24 cabin?
23 ft long, 5 ft 7 in wide and 5 ft 1 in high, as the manufacturer publishes it. Cabin length is usually measured from the cockpit divider to the aft pressure bulkhead or baggage door, so it includes the galley and lavatory.
Can you stand up in a PC-24?
Not fully upright. At 5 ft 1 in the PC-24 cabin is 11 in short of 6 ft, so most adults stoop to move about; seated, there is room to work and sleep.
How many seats does a PC-24 have?
The PC-24 is published for up to 10 passengers. A typical executive completion seats 8, arranged as a club of four facing seats, a pair of forward-facing seats and a pair of forward-facing seats. Owners choose their own completion, so a given aircraft may seat fewer in larger seats or carry a divan that converts to a bed.
Does the PC-24 have a bathroom?
Yes. The typical layout has forward lavatory and a forward galley.

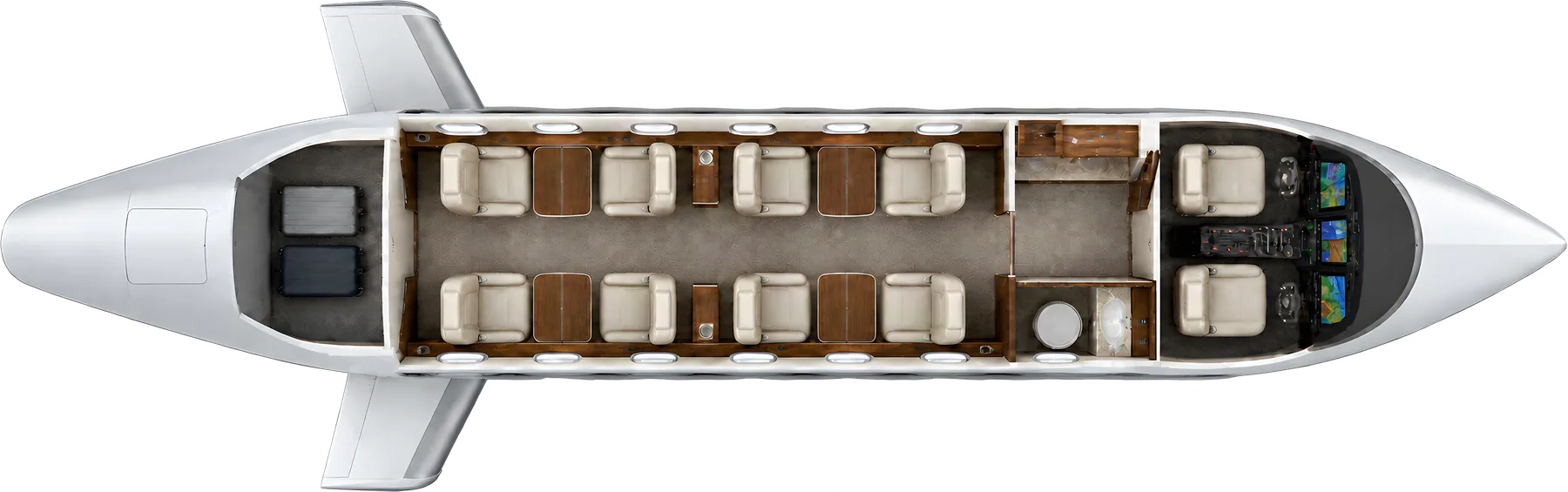

What does the PC-24 seat map look like?
Typical 8-passenger layout: two clubs of four, forward galley and lavatory, aft baggage. This page shows 2 seat maps: switch between them above the comparison. Every aircraft is completed to its owner's order, so these are representative layouts, not any one aircraft's.
How does the PC-24 cabin compare with the Phenom 300?
The PC-24 cabin is 6 in wider than the Phenom 300's, 2 in taller and 6 ft 7 in longer (5 ft 1 in high, 5 ft 7 in wide, 23 ft long against 4 ft 11 in, 5 ft 1 in, 16 ft 5 in).
Is the 3D PC-24 cabin the real interior?
It is Radar's illustration of the type, built from the published cabin length, width and height with a representative 8-seat layout for its size. Seats, materials and monuments differ from aircraft to aircraft. No manufacturer artwork, photographs or logos are used.
