Eclipse 500 interior cabin size, seat map and 3D tour

12 ft 4 in long, 4 ft 8 in wide and 4 ft 2 in high, as the manufacturer publishes it. Cabin length is usually measured from the cockpit divider to the aft pressure bulkhead or baggage door, so it includes the galley and lavatory.

Not fully upright. At 4 ft 2 in the Eclipse 500 cabin is 22 in short of 6 ft, so most adults stoop to move about; seated, there is room to work and sleep.

The Eclipse 500 is published for up to 5 passengers. A typical executive completion seats 3, arranged as a club of four facing seats and a pair of forward-facing seats. Owners choose their own completion, so a given aircraft may seat fewer in larger seats or carry a divan that converts to a bed.

The illustrated layout has no enclosed lavatory or galley, which is common in the smallest jets. Check the completion of any one aircraft.

Typical 3-passenger layout: three staggered forward-facing seats, aft baggage stowage, no galley or lavatory. This page shows 2 seat maps: switch between them above the comparison. Every aircraft is completed to its owner's order, so these are representative layouts, not any one aircraft's.

The Eclipse 500 cabin is 1 in wider than the Citation Mustang's, 4 in lower and 2 ft 7 in longer (4 ft 2 in high, 4 ft 8 in wide, 12 ft 4 in long against 4 ft 6 in, 4 ft 7 in, 9 ft 9 in).

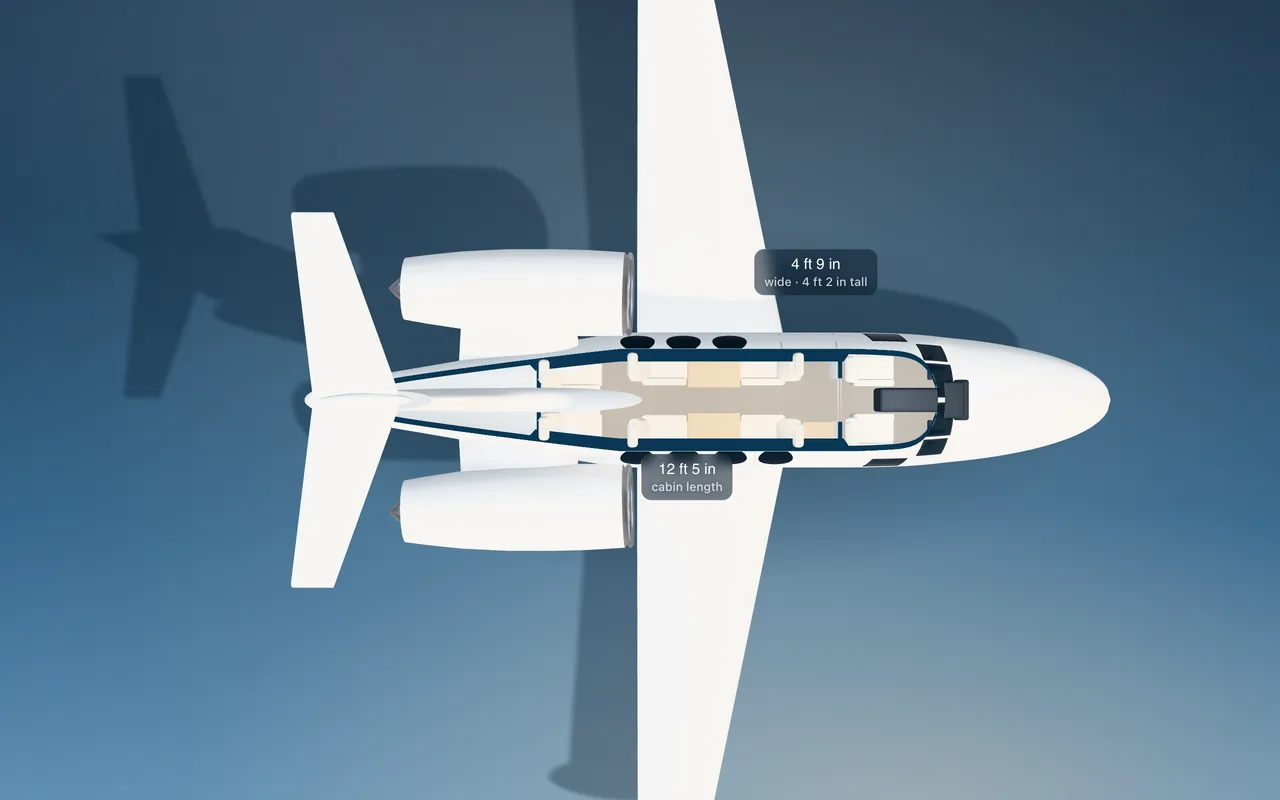

It is Radar's illustration of the type, built from the published cabin length, width and height with a representative 6-seat layout for its size. Seats, materials and monuments differ from aircraft to aircraft. No manufacturer artwork, photographs or logos are used.
